JAC Sunray Cargo Van
Allow us to introduce our Jac Sunray Cargo Van with 12m3 of Cargo Space. The JAC Sunray has proven itself to be a very reliable and comfortable van. The Sunray has China’s top technology integrated into it, it has a stylish exterior designed and developed by JAC’s Italian Design Center, and it has a sleek and modern interior designed by JAC’s Japanese Design Center. The JAC Sunray has all the attributes to satisfy even the most demanding user.

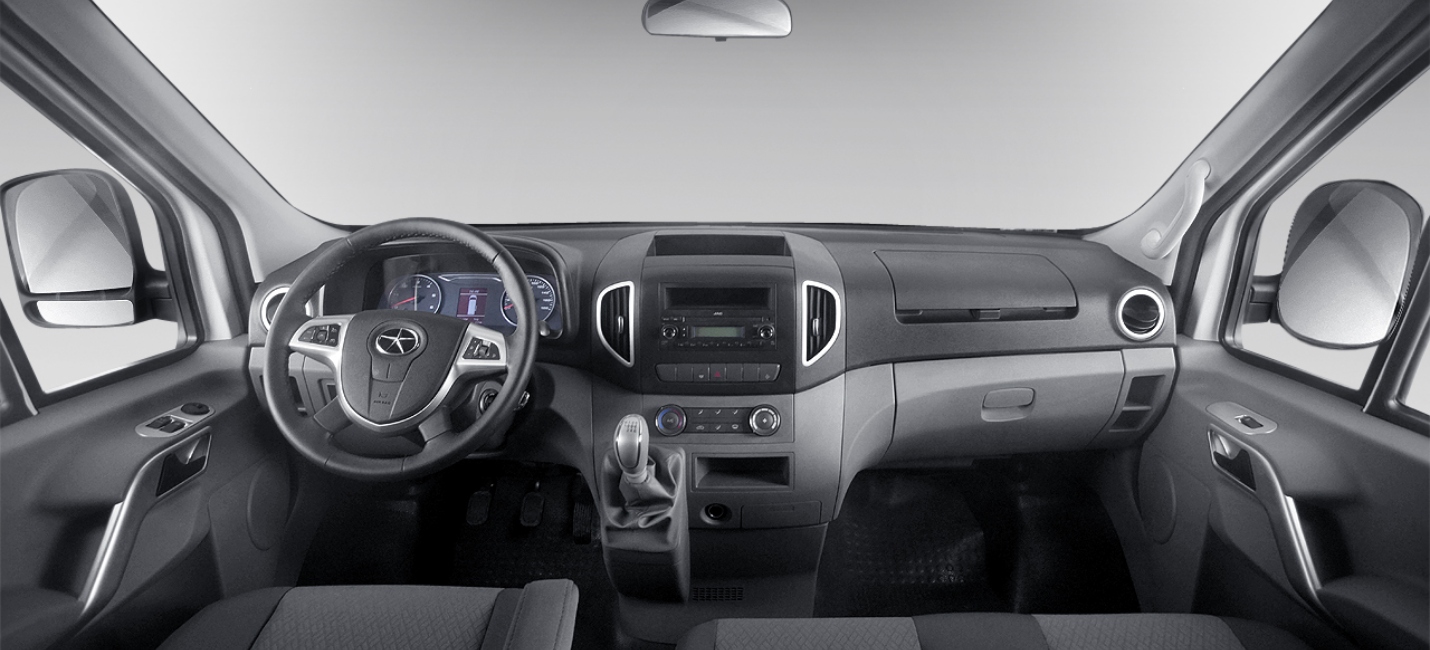

Interior
The Sunray has an elegant and refined look.
SPECIFICATIONS
JAC Sunray Cargo Van
| CONFIGURATION | MICROBUS |
|---|---|
| WHEEL DRIVE | 4X2 |
| RATINGS & PERFORMANCE CHARACTERISTICS | |
| Gross Vehicle Mass (GVM) | 4,000kg (8,800lbs) |
| Related Load Capacity | 1.6 tons |
| Maximum Speed @ GVM | 130km/h |
| Engine Compliance | Euro 3 |
| Year | 2021 |
| ENGINE | |
| Engine Model | HFC4DE1-1B |
| Maximum Power | 150hp @ 3,200rpm |
| Maximum Torque | 355Nm @ 1,800-2,600rpm |
| Maximum Engine Speed | 3,600rpm |
| Type | Diesel, 4 cylinder in-line |
| Piston Displacement | 2.746L |
| Fuel Injection System | Electronic control Common Rail |
| Air Intake System | Turbo-intercooled, stack type air intake |
| TRANSMISSION/CLUTCH | |
| Transmission | Mechanical, 6 speed forward + reverse |
| Clutch | Dry Single plate with damper springs |
| SUSPENSION/AXLES | |
| Front Suspension | MacPherson Independent Suspension |
| Rear Suspension | Leaf Springs with shock absorbers |
| BRAKES | |
| Service Brakes | Hydraulic |
| Front Service Brakes | Disk |
| Rear Service Brakes | Drum |
| ABS System | Yes |
| EBD System | Yes |
| Parking Break | Mechanical |
| Exhaust Brake | Yes |
| GENERAL | |
| Overall Dimensions (L*W*H) | 5995mm*2098mm*2645mm |
| Cargo Space | 12m3 |
| Tire Size (STD) | 185/75R16 |
| Spare Tire | Yes |
| Batteries | 12V |
| Fuel Tank Capacity | 80L (21 US Gallons) |
| SRS Air Bag | Driver |
| Fog Lights | Yes |
| Front Headlamps | Halogen |
| Tail Lamps | Halogen |
| Reverse Sensors | Yes |
| INTERIOR FEATURES | |
| Seating Capacity | 3 |
| Air Conditioning | Yes |
| Sun Visor | Driver and Front Passenger |
| Steering Wheel Controls | No |
| Adjustable Steering Wheel (up or down) | Yes |
| Steering | Hydraulic |
| Electric Windows | Yes |
| Wiper Control Switch | Yes |
| Central Locking | Yes |
| Key with Remote Control Lock | Yes |
| Seat Cover Material | Cloth or Leatherette |
| Driver Seat Adjustability | Manual |
| Audio | AM/FM Radio with CD Player and USB |
| Dash Lights Control Switch | Yes |
| Instruments | Speedometer, Engine Tachometer, Odometer, Fuel Guage, Coolant Temperature Guage |
Date:
June 21, 2021
